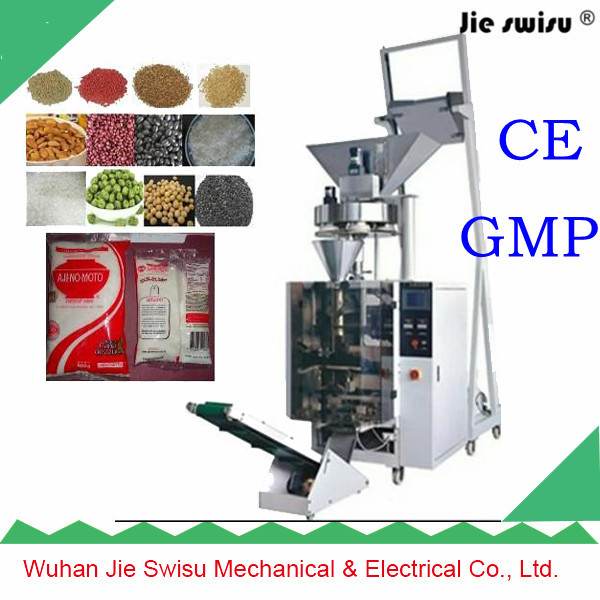

小袋粉體顆粒包裝機

特點

背封，三邊封，四邊封包裝形式

包裝運行數據及調節在顯示屏上直觀顯示，直接操作

裝配光電控制裝置保證包裝袋圖案完整
自動完成制袋，計量，充填，封合，斷切，計數，打印批號

殼體及物料接觸部位使用不銹鋼材料
Back sealing, three-side sealing, four-side packing method
The packing running data and adjustment are directly displayed on the display. The user can directly operate it on the displayer.
Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
It can automatically finish making-bag, metering, filling, sealing, cutting, counting
and printing batch number.
The body and the parts touching the material are made of stainless steel.

適合物料

食品，醫藥，化工，種子，日化行業松散狀無粘性顆粒物料
It is applicable for packing foodstuff, medicine, chemical industry, seed, and the loosing
non-sticking granule daily chemical industry.

技術規格

Technical specifications

型號

Type

CJG-320AT

CJG-320B

CJG-320A

制成袋長 mm

bag-making length

50-170

50-280

50-380

制成袋寬 mm

Bag-making width

25-120

70-190

70-190

包裝薄膜寬度 mm

Packing film width

60-240

160-380

160-460

包裝容量 ml

Packing capacity

5-200

50-1400

100-1000

包裝速度 bags/min

Packing speed

35-70

20-40

40-70

功率 Kw

power

1.6

1.65

2.6

氣源 Mpa

air power

0.6

0.65

0.6

氣源 Mpa

air consumption

100

100

100

外形尺寸 mm

Overall Dimension

760×980×1800

900×1120×2360

900*1250*2100

整機質量 Kg

Weight

300

480

420

型號

Type

HXL-K100

HXL-K300

制成袋長 mm

bag making length

40-160

制成袋寬 mm

bag making width

25-120

包裝薄膜寬度 mm

packing film width

60-240

包裝容量 ml

packing capacity

5-100

包裝速度 bags/min

packing speed

40-80

功率 Kw

power

2.4

外形尺寸 mm

Overall Dimension

690×1010×1750

整機質量 Kg

Weight

300
